AMP 1-776180-1 35-Pin Right-Angle Automotive ECU Connector 4MM 1-776164-1

Büyük resim : AMP 1-776180-1 35-Pin Right-Angle Automotive ECU Connector 4MM 1-776164-1

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	BEDE
Sertifika:	RoHS
Model numarası:	1-776180-1/1-776164-1
Belge:	1-776164-1（1）.pdf

Ödeme & teslimat koşulları:

Min sipariş miktarı:	500
Fiyat:	Pazarlık edilebilir
Teslim süresi:	miktarlara dayalı
Ödeme koşulları:	T/T, Western Union
Yetenek temini:	günde 3000 adet

İletişim

Detaylı ürün tanımı

Seri:	AMP SUPERSEAL 16	Sabitle:	35 Pin
Dişi Parça No.:	1-776164-1	Erkek Parça No.:	1-776180-1
Malzeme:	Siyah PA66+GF (UL94 V-0), Bakır alaşımı (kalay/altın kaplama)	Sıcaklık aralığı:	-40°C~+125°C
Su Geçirmez Derecelendirmesi:	IP67
Vurgulamak:	776164-1 Automotive ECU Connector , 35 Pin Automotive ECU Connector , 1-776180-1 Automotive ECU Connector

AMP 1-776180-1 35-Pin Right-Angle Automotive ECU Connector 4MM 1-776164-1

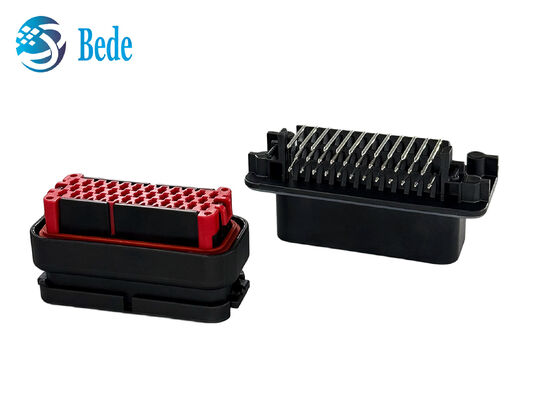

The TE/AMPSEAL 16 Series 35-way right-angle waterproof connector is a high performance automotive grade solution engineered for harsh ECU operating environments. Featuring superior sealing, compact construction and standardized compatibility, it is built to meet the stringent demands of modern automotive electronics. Consisting of a female harness connector and a right angle male PCB header, it ensures stable, reliable power and signal transmission under extreme conditions including high temperatures, vibration, oil exposure and water ingress.

Product Specifications

Component	Features	TE Part Number	Specification
Rated Current	Up to 15A per contact (0.5~1.25mm² wire compatible)	-	High-current automotive application
Mounting Style	Female: Wire crimp type; Male: Right-angle PCB solder type	-	Wire-to-board/wire-to-wire, space-saving

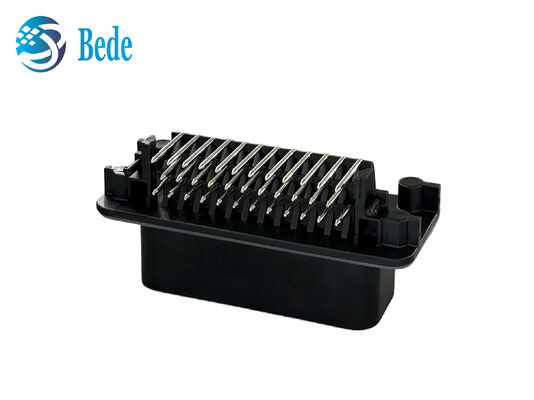

Male Header (PCB Side)	35 right-angle pins, mounting post	776180-1	Right-angle PCB male header

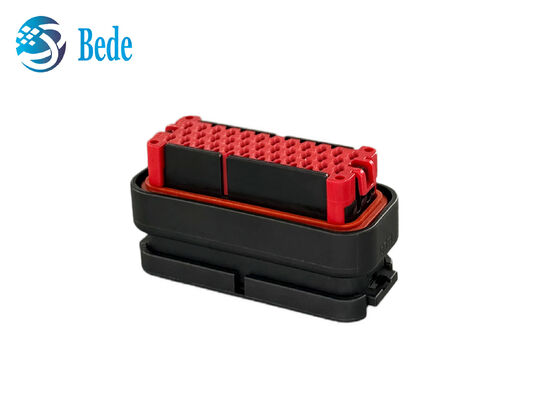

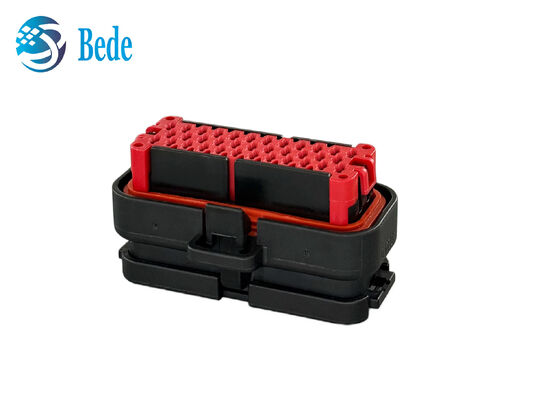

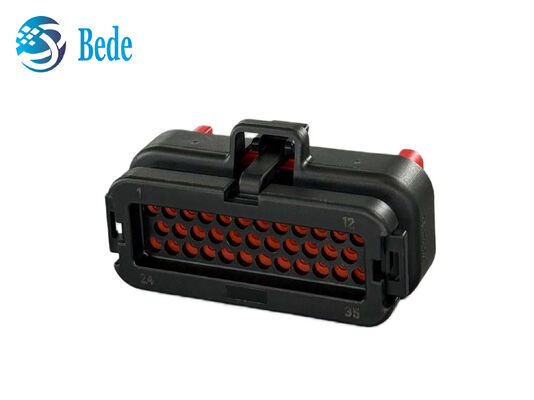

Female Housing (Wire Side)	Integral silicone seal, red secondary lock, latch	776164-1	IP67 waterproof female connector

Product Features

IP67 Rated Dual Seal Protection - Built with orange primary gasket and red secondary locking mechanism, reliably repels moisture, grease and dust in harsh engine bay environments
Optimized Right Angle Pin Layout - 90° angled terminals effectively minimize vertical PCB clearance, ideal for space constrained ECU and control module designs
Direct TE AMPSEAL 16 Series Compatibility - Fully interchangeable with genuine TE components, widely compatible with standard ECU and controller board connections
Simplified Production & Service - Right angle male connector supports automated PCB soldering, while the female side enables efficient wire harness crimping for mass production

Applications

Engine ECU, transmission TCU, body control module BCM, and urea pump DCU in conventional vehicles
BMS, MCU and VCU for new energy vehicle electronic systems
On-board control systems for heavy trucks, construction machinery and agricultural equipment
Wiring connections for automotive sensors, actuators and diagnostic interfaces

Installation & Notes

Supports automated soldering and harness crimping for mass production; avoid improper disassembly, over-temperature exposure, and excessive soldering heat to preserve sealing and performance.
