Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44

Büyük resim : Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	BEDE
Sertifika:	CE,RoHS
Model numarası:	ABD024+ABD124

Ödeme & teslimat koşulları:

Min sipariş miktarı:	30 adet
Fiyat:	Pazarlık edilebilir
Teslim süresi:	5 gün
Ödeme koşulları:	Banka havalesi, Western Union, MoneyGram
Yetenek temini:	günde 5000 adet

İletişim

Detaylı ürün tanımı

Renk:	kırmızı ve beyaz	Nominal Gerilim:	AC380V~415V
Nominal Akım:	16Amp	Standart:	IEC 60309
İletişim Malzemesi:	Pirinç	Muhafaza Malzemesi:	Polipropilen
Vurgulamak:	Male Female Electrical Plug Socket IP44 , 3P+N 4 Pin Industrial Socket , Male Female Industrial Plug And Socket

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44

There are many types of IEC 60309 sockets, outlets, plugs, connectors and application inlets, they differ with respect to voltage, current, frequency rating and number of pins. Plugs have round pins, arranged in a circle, all plugs and sockets have a protective earth (PE) connection, the diameter of it is always 2 mm larger than the other pins, position of the earth pins vary between different types of plugs, can be regarded as a clock.

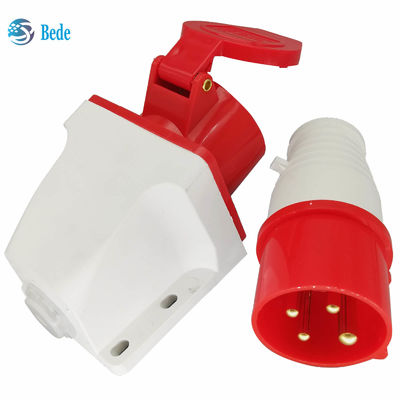

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 0

This page is a set of plugs and wall mounting type sockets, the sockets are generally mounted on the flat suiface, such as equipment (chassis) housing and the wall. Commonly used industries are: power distribution boxes, distribution cabinets, injection moulding machines, packaging machines, showrooms, etc, for power transmission and distribution.

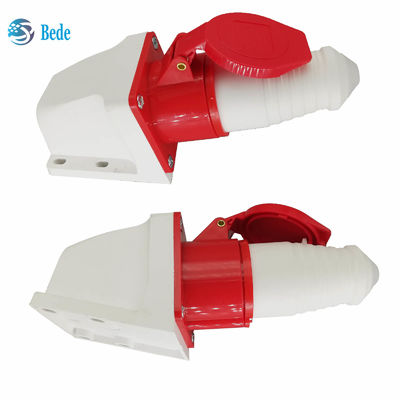

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 1

Quickly details of the CEE plug and socket

Pins	Rated voltage	phase	Rated current	housing material	pins materials	Earth position
3p+E	380~415V	3 phase	16 Amp	PP	Brass	6h

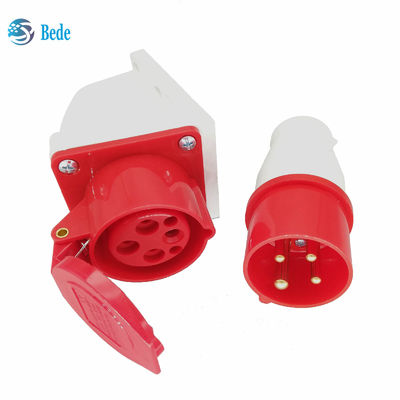

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 2

Replaceable CEE sockets

This plug also be used with panel mounting socket and coupler

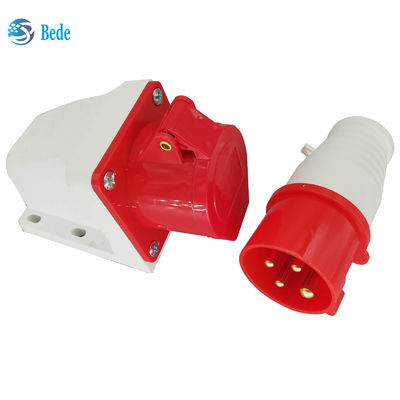

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 3
